Description

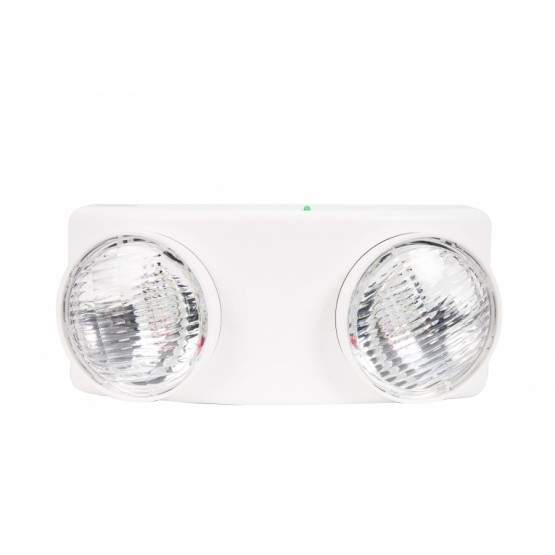

ETL 201P – LED
is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation.
Small and aesthetically in design. Easy installation. Portable, allows flexibility in usage.
Adjustable twin lamp allows flexibility in angle of projection.
Suitable for Shops, Supermarkets, Factories, Schools, Banks, Computer Rooms, Offices, Public Halls, Restaurants, Hospitals, etc.
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | 2.4V 2.5Ah Hight Temp Rated Nickel Cadmium cells. |
| Lamp Used | : | 2 x SMT NICHIA White LED |
| Rated Period | : | > 2 hrs, 3 hrs or others |
| Mode | : | Non-maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | 1.3W |
| Charge Monitor | : | Super bright Green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 3000 mcd/m2 |
| Electromagnetic Field | : | 8.7m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Mounted Fire Retardant ABS housing 20mm Ø K/O hole Fire Retardant ABS Lamp Head |
| Dimension | : | 305mm(L) x 95mm(W) x 136mm(H) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 315mm(L) x 100mm(W) x 145mm(H) |
| Compliance | : | CP 19-2000, SS263 : Part 2, IEC 598-2-22 |
| Warranty | : | 1 Year |
