Description

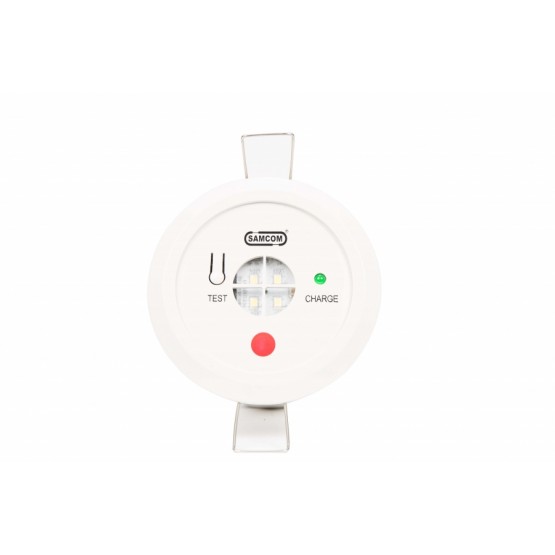

EHL 101-LED
is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation.
Small and aesthetically in design. Easy installation. Snap in and flush mount firmly onto ceiling/panel.
It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc
Recessed Version is default.
Surface mount casing sold separately.
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others |
| Lamp Used | : | 1 W SMT NICHIA White LED |
| Rated Period | : | > 4 hrs or others |
| Mode | : | Non-maintained |
| Operation Temperature | : | ta 25 °C |
| Power Consumption | : | 2.8VA |
| Charge Monitor | : | Super bright Green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 100 Im |
| Electromagnetic Field | : | 6.9m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Moulded Fire Retardant PC + UV housing. |
| Dimension | : | 97mm(L) x 97mm(W) x 102mm(H) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 110mm(L) x 110mm(W) x 120mm(H) |
| Compliance | : | CP 19-2000, SS263 : Part 2, IEC 598-2-22, AS 2293 |
| Warranty | : | 1 Year |
